Hi folks! I am sure that at least once, every one of you must have been to a situation where you need your TextView to change its size according to the content you put inside it. It looks more dynamic and creates a good user experience.

Android didn’t have the built in support for this. But then, Android Oreo released. 😃. The support for Auto sizing TextView is added in Android O as well as in the support library version 26. Although, It is introduced in Android O, This feature is backward compatible in Android 4.0 and later. Let’s see how to use this feature.

Dependencies

Make sure that you have added dependency for support library version 26 or later in your project’s build.gradle file.

dependencies {
    implementation 'com.android.support:appcompat-v7:27.1.1'
    implementation 'com.android.support:support-v4:27.1.1'
}

Now, add a TextView normally as you have been always adding.

<TextView
    android:layout_width="300dp"
    android:layout_height="300dp"
    android:text="Hello World!"
    android:textSize="24sp"
    app:layout_constraintBottom_toBottomOf="parent"
    app:layout_constraintEnd_toEndOf="parent"
    app:layout_constraintStart_toStartOf="parent"
    app:layout_constraintTop_toTopOf="parent" />

To make the content auto sizing, add following property to the TextView:

app:autoSizeTextType="uniform"

It enables text auto sizing for the TextView. This scales the text uniformly on horizontal and vertical axis ignoring android:textSize property. Make sure you are using app namespace when using the support library.

Don’t use wrap_content for layout width or height. It may produce unexpected results. Instead, use match_parent or fixed size for width and height.

You can turn auto sizing by setting app:autoSizeTextType to none instead of uniform as shown below.

app:autoSizeTextType="none"

Enable or Disable Programmatically

To enable text auto sizing:

//using support library
TextViewCompat.setAutoSizeTextTypeWithDefaults(textView,TextViewCompat.AUTO_SIZE_TEXT_TYPE_UNIFORM);

//for android O and later
textView.setAutoSizeTextTypeWithDefaults(TextView.AUTO_SIZE_TEXT_TYPE_UNIFORM);

To disable it, use AUTO_SIZE_TEXT_TYPE_NONE instead of AUTO_SIZE_TEXT_TYPE_UNIFORM.

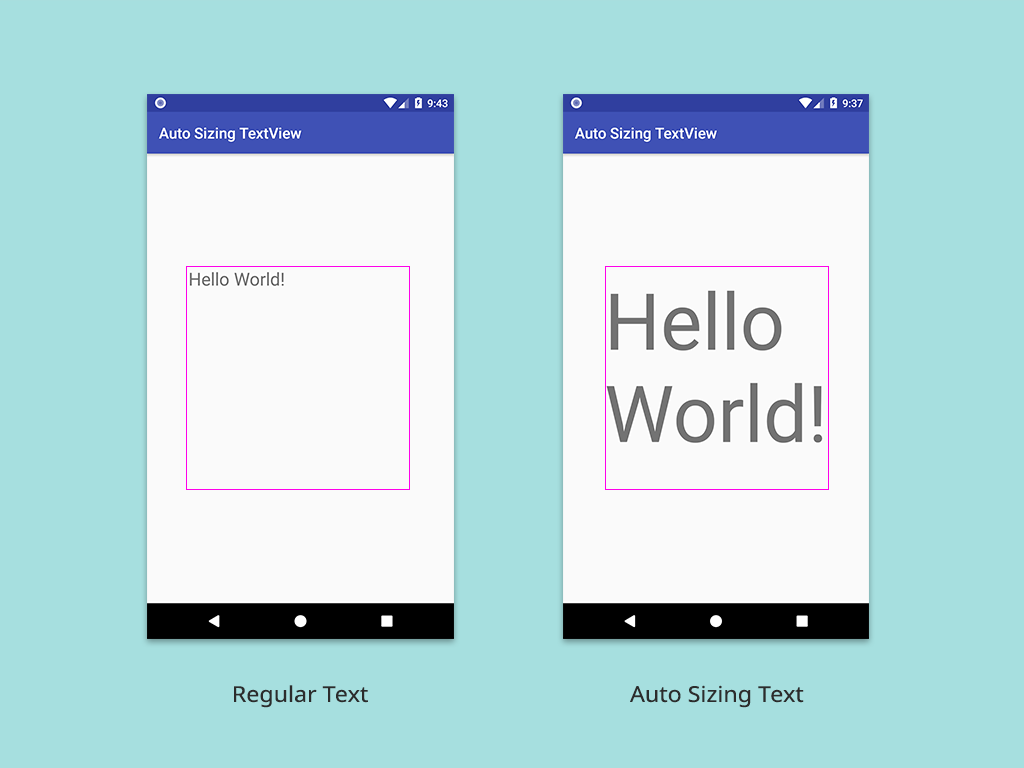

Regular Text vs Auto Sizing Text
Regular Text vs Auto Sizing Text

Customize Text Auto Sizing

So far, we have seen default uniform auto size text type. There more ways to customize it further. There are 4 more properties to customize it:

  1. autoSizeMaxTextSize
  2. autoSizeMinTextSize
  3. autoSizeStepGranularity
  4. autoSizePresetSizes

If you don’t set these properties then default values will be used as shown below:

android:autoSizeMaxTextSize="112sp"
android:autoSizeMinTextSize="12sp"
android:autoSizeStepGranularity="1sp"

Granularity

autoSizeMinTextSize and autoSizeMaxTextSize properties are used to define the range between the minimum and maximum text size. autoSizeStepGranularity defines the incremental steps. These 3 attributes are used together. The TextView will scale uniformly in the range between the minimum and the maximum size in increaments of step granularity.

For Example, defining attributes as below:

<TextView
    android:layout_width="300dp"
    android:layout_height="300dp"
    android:autoSizeMaxTextSize="56sp"
    android:autoSizeMinTextSize="14sp"
    android:autoSizeStepGranularity="5sp"
    android:text="Hello World!" />

Here, the step size is 5sp and the range is from 14sp to 56sp. That means from text size 14sp, it will increment text size to 5sp until it finds the max text size that can be used to display the content of the TextView and uses that max size to display the content. The max text size changes as the content of the TextView changes.

Set Properties Programmatically

To set these properties using java code, setAutoSizeTextTypeUniformWithConfiguration() method is used.

void setAutoSizeTextTypeUniformWithConfiguration (TextView textView,
                int autoSizeMinTextSize,
                int autoSizeMaxTextSize,
                int autoSizeStepGranularity,
                int unit)

Example:

//for using support library
TextViewCompat.setAutoSizeTextTypeUniformWithConfiguration(tvText,
        14,
        56,
        5,
        TypedValue.COMPLEX_UNIT_SP);

//for android O and later
tvText.setAutoSizeTextTypeUniformWithConfiguration(14,
        56,
        5,
        TypedValue.COMPLEX_UNIT_SP);

Preset Sizes

Present sizes are used to have more control over the text sizes. For example, If your app needs to follow some specific text size design guidelines. Then, you can provide a list of sizes and it will use the largest one that fits. Use the property autoSizePresetSizes and provide the list of sizes as value to the attribute.

app:autoSizePresetSizes="@arrays/autosize_text_sizes"

First, Create an array in res>arrays.xml.

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <array name="autosize_text_sizes">
        <item>8sp</item>
        <item>16sp</item>
        <item>24sp</item>
        <item>32sp</item>
        <item>40sp</item>
        <item>48sp</item>
        <item>56sp</item>
        <item>64sp</item>
    </array>
</resources>

Now, in the TextView set the preset sizes property.

<TextView
    android:layout_width="300dp"
    android:layout_height="300dp"
    android:text="Hello World!"
    android:autoSizeTextType="uniform"
    android:autoSizePresetSizes="@arrays/autosize_text_sizes" />

Set sizes Programmatically

To set preset sizes properties using java code, setAutoSizeTextTypeUniformWithPresetSizes() method is used.

void setAutoSizeTextTypeUniformWithPresetSizes(TextView textView,
        int []presetSizes,
        int unit)

Example:

int []presetSizes={8,16,24,32,40,48,56,64};

//using support library
TextViewCompat.setAutoSizeTextTypeUniformWithPresetSizes(textView,
presetSizes,
TypedValue.COMPLEX_UNIT_SP);

//for android O and later
textView.setAutoSizeTextTypeUniformWithPresetSizes(presetSizes,
TypedValue.COMPLEX_UNIT_SP);

That’s it! Start using AutoSizing TextView and make beautiful UI. 🙂
